Learn moreTo understand the scale of the future management requirements of Public Rights of Way on the Wales Coast Path (WCP), NRW wanted to understand where Shoreline Management Plan (SMP) policies might impact the WCP. This is particularly important if a coastal structure which supports or protects the footpath faces a management change.
ABPmer was commissioned to investigate which footpaths in Wales may be affected if coastal defences are no longer maintained due to the implementation of No Active Intervention or Managed Realignment policies; and the total length of footpaths, per Local Authority area and per SMP epoch.
ABPmer developed a GIS processing methodology using available spatial data on SMP policy units, footpaths and coastal defences maintained by NRW and Local Authorities. We also digitised missing coastal defences that were not included in the available dataset.
The outputs of the study included:

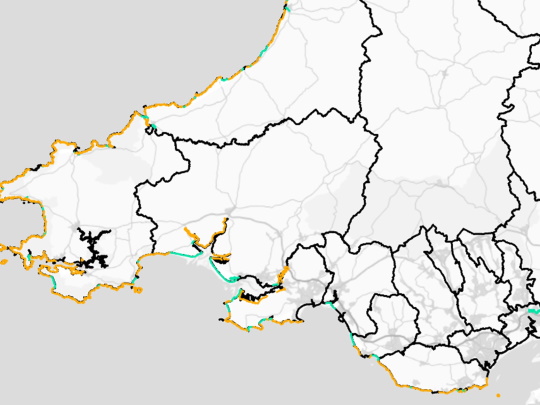

The outputs were designed to be interrogated by SMP Policy Unit, SMP epoch and Local Authority area, and indicated the total length of affected Public Rights of Way and WCP for each of these categories.
ABPmer’s data and GIS specialists are experienced marine data handlers, developing bespoke GIS mapping and data management tools for governing bodies, the public sector and marine and coastal operators.
